Sardine Can Forming Mold / Fish Tin Can Drawing Die

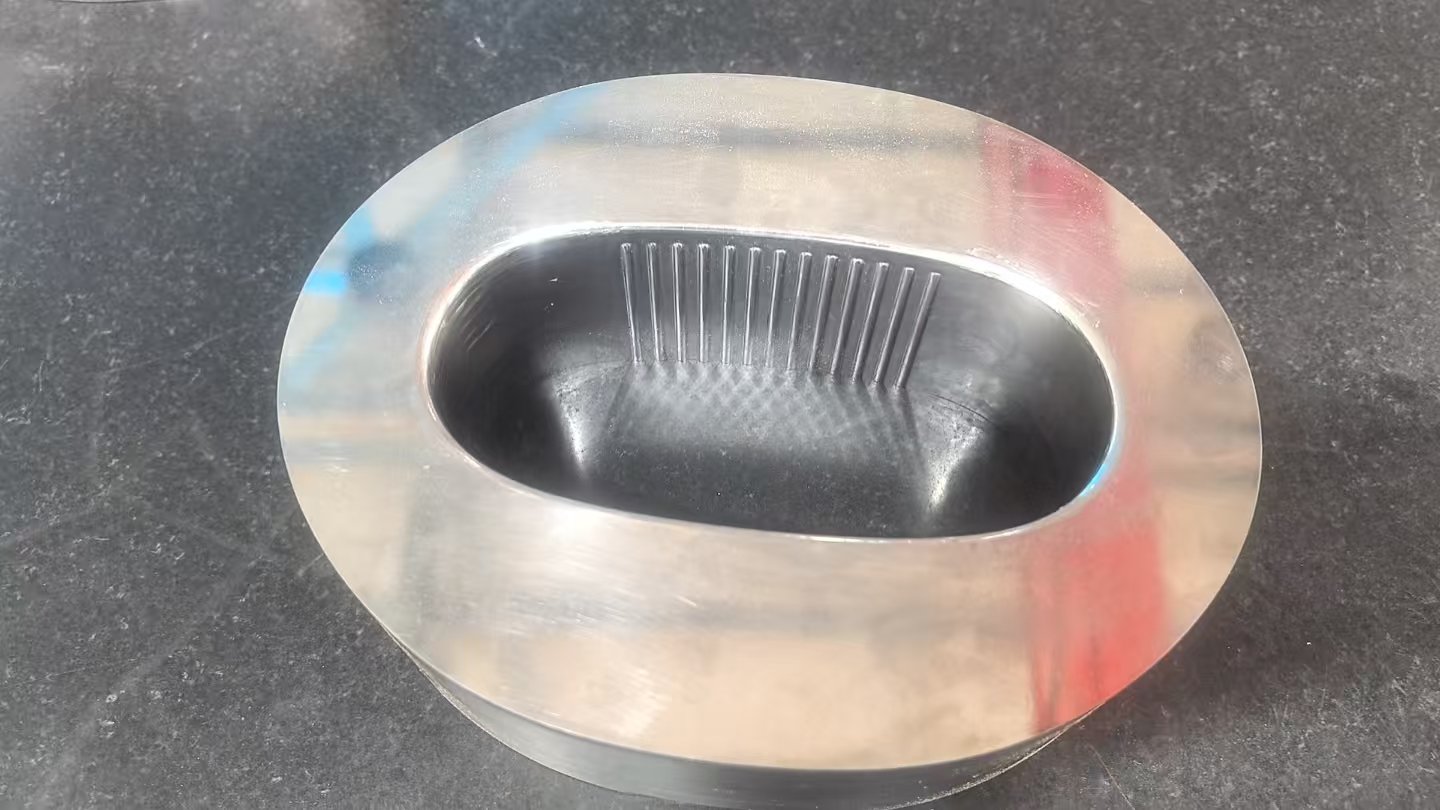

1、Custom Oval Cavity & Internal Vertical Rib Structure

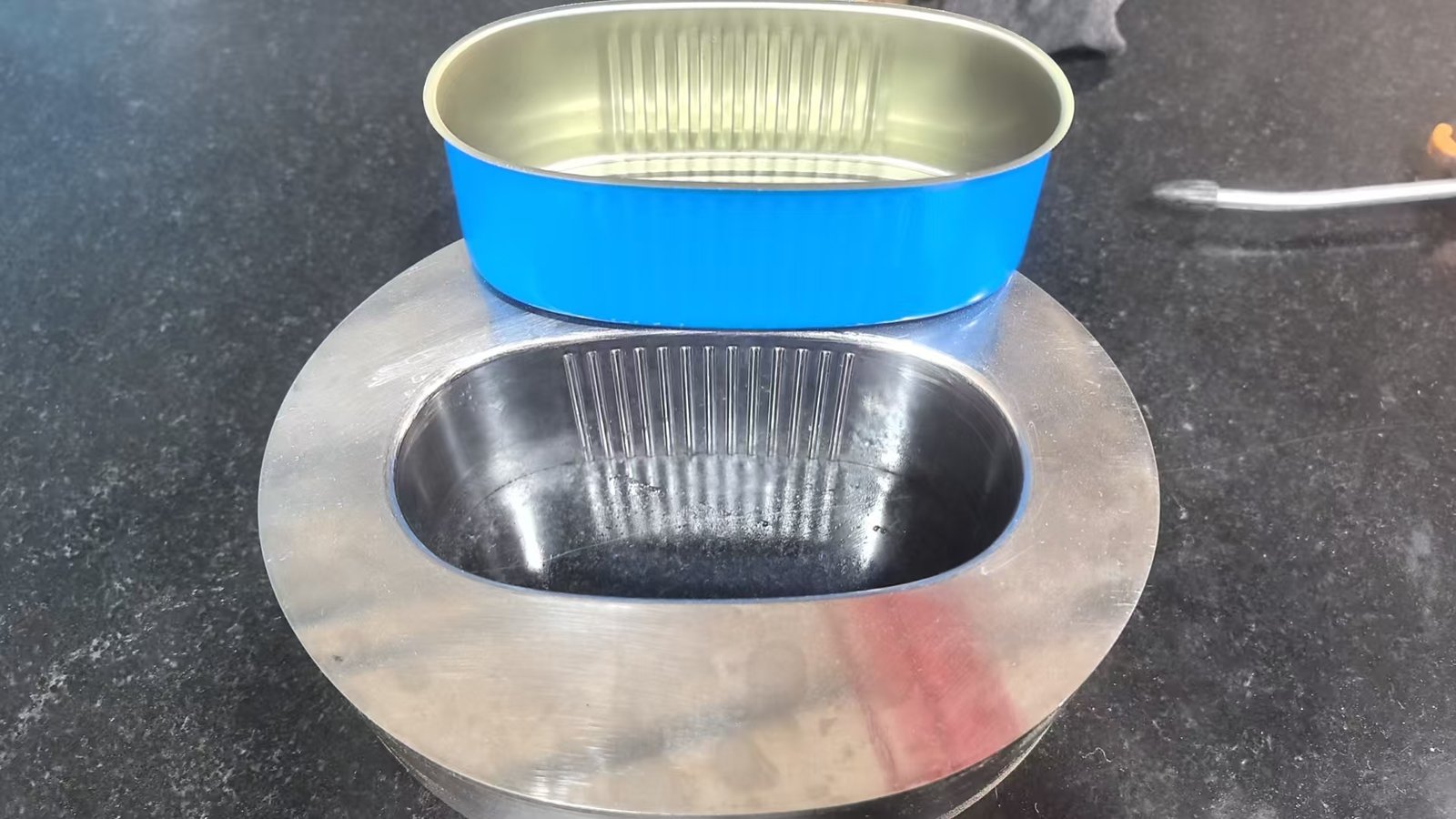

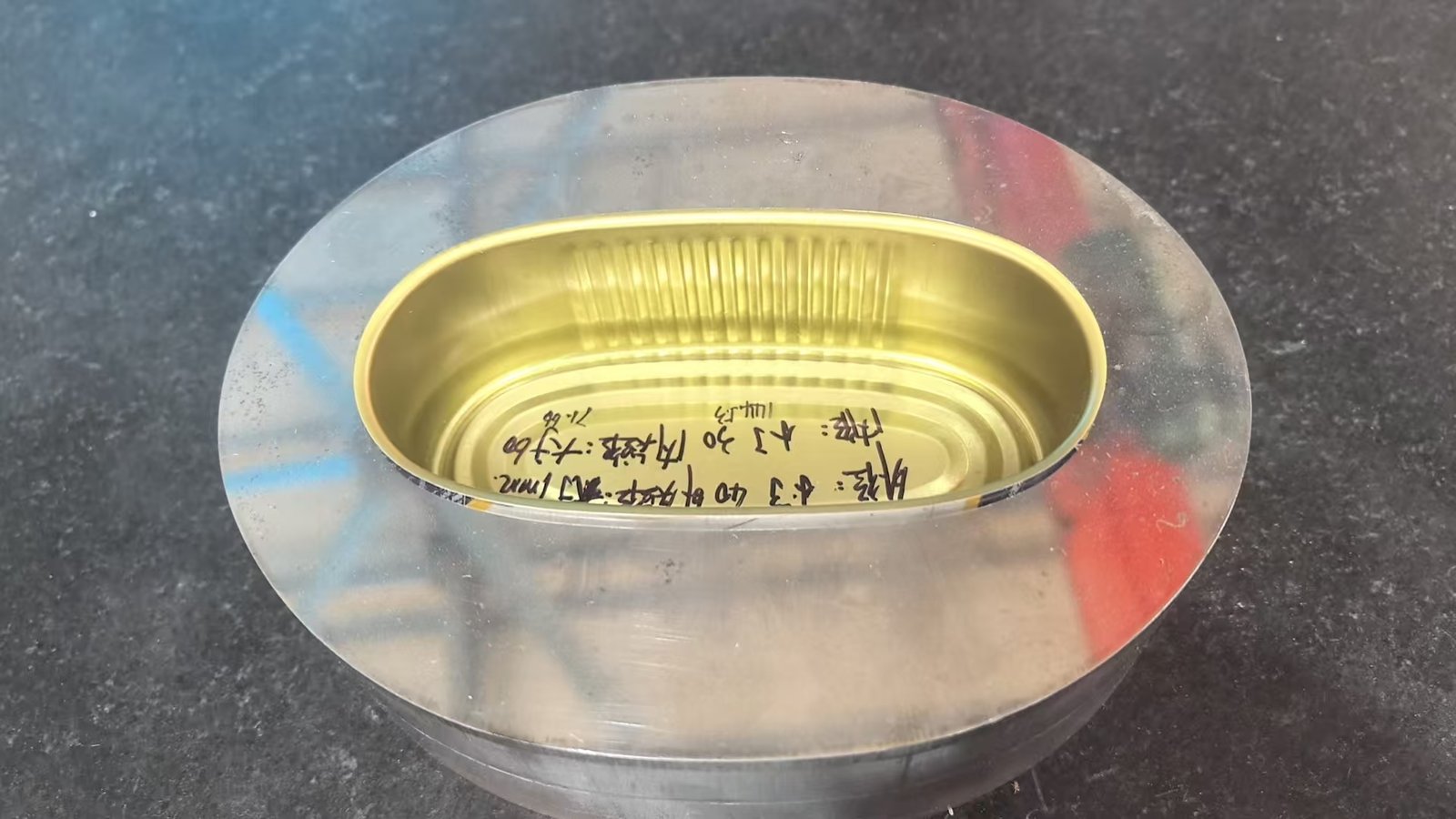

The mold inner cavity is designed with evenly spaced vertical ribs, one-to-one matching the corrugated inner wall of finished sardine cans. The rib depth, spacing and oval outline can be fully adjusted according to your target can specifications, ensuring uniform texture and stable structural strength of every seafood tin can.
2、High Hardness Alloy Steel & Excellent Wear Resistance
Premium steel raw material, heat treated to HRC58–62. Under continuous 24-hour high-speed stamping production, the mold cavity resists friction, impact and abrasion, greatly extending service life and reducing frequent mold replacement downtime.
3、Mirror Polished Inner Cavity for Flawless Can Surface

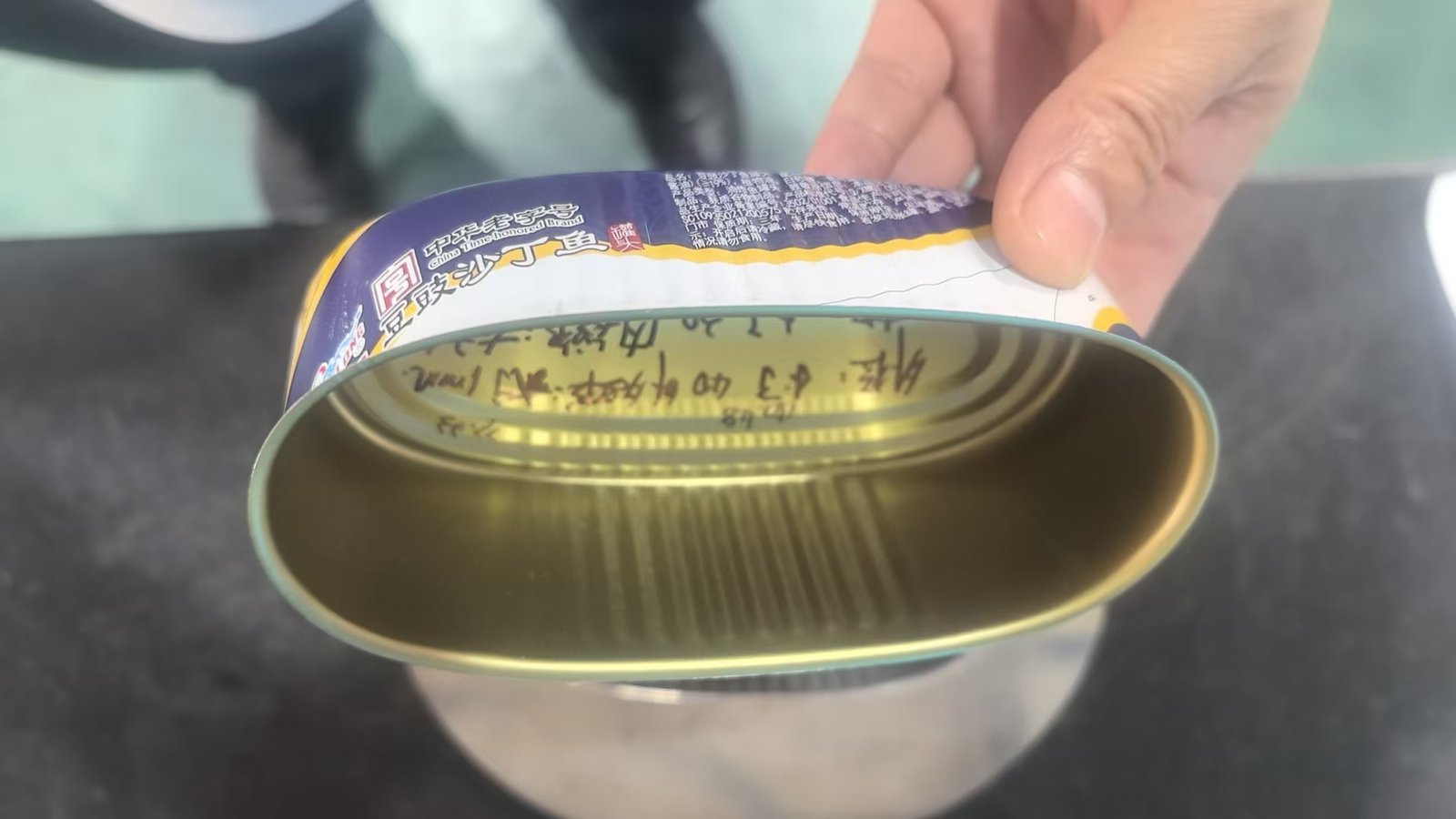

Precision grinding and mirror polishing eliminate machining lines inside the mold. Thin tinplate slides smoothly during deep drawing, producing scratch-free, wrinkle-free oval sardine cans with consistent wall thickness.
4、High Dimensional Precision & Stable Forming Accuracy
Strict CNC machining tolerance control ensures every finished sardine can maintains uniform oval size, rib depth and wall thickness, drastically cutting reject rates in seafood can mass production.
5、Full OEM Customization Service
We customize mold overall diameter, oval cavity size, rib layout, mounting base structure and surface treatment. You can provide finished sardine can samples, CAD drawings or dimension parameters for tailor-made mold development. Small trial order molds are acceptable.
